Using our experience and technical expertise in drive components, we ensure that the specifications of JT advanced power transfer chains meet or exceed the requirements of all modern motorcycles, be it street, motocross, enduro, off-road or ATV. Available in all sizes, a full range is available for all types of motorcycle in black steel or nickel finish.

Chain Range

BHP/CC application charts for reference only – to ensure correct chain selection, follow the vehicle manufacturer’s recommendations

Z3

Super Heavy Duty X-Ring Chain
Chain Street/Dual Purpose Motocross ATV
530 Z3 up to 1400 cc – –
525 Z3 up to 1400 cc – –
520 Z3 up to 1000 cc – –
Gold & Silver
Black Steel

X1R

Heavy Duty X-Ring Chain
Chain Street/Dual Purpose Motocross ATV
530 X1R up to 900 cc / 130 bhp (97 kW) – –
525 X1R3 up to 900 cc / 130 bhp (97 kW) – –
520 X1R3 up to 800 cc / 120 bhp (90 kW) – 200 to 600 cc
520 X1R – 200 to 600 cc –
428 X1R up to 250 cc up to 200 cc up to 200 cc
All Silver (Nickel)
Black Steel
Gold & Black (520X1R only)

HPO

High-Performance O-Ring Chain
Chain Street/Dual Purpose Motocross ATV
428 HPO up to 200 cc up to 150 cc up to 150 cc
Gold & Black

HDS

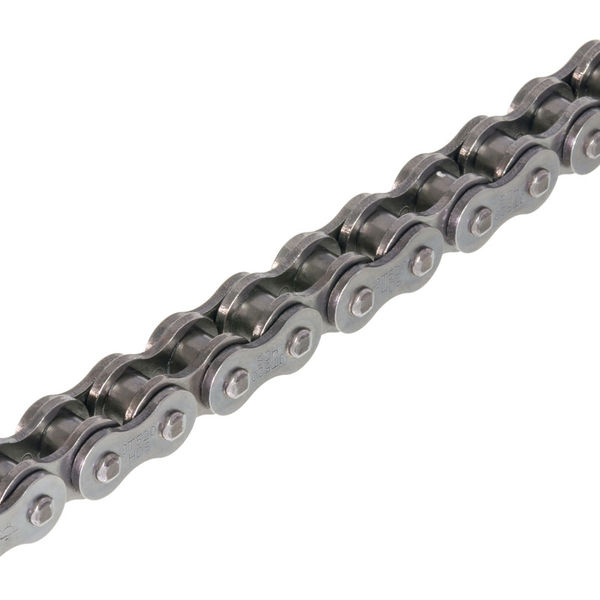

Super Heavy Duty Chain
Chain Street/Dual Purpose Motocross ATV
520 HDS up to 350 cc up to 500 cc up to 500 cc
All Silver (Nickel)
Gold & Black
Black Steel

HDR

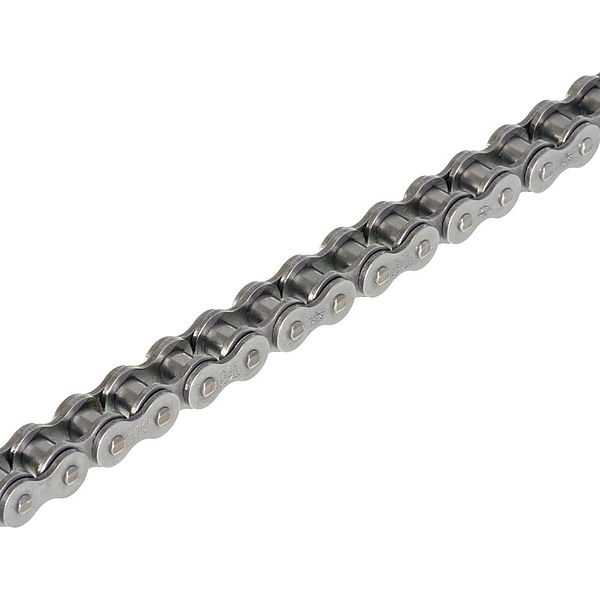

Heavy Duty Chain
Chain Street/Dual Purpose Motocross ATV
520 HDR up to 200 cc up to 350 cc up to 350 cc
428 HDR up to 200 cc up to 150 cc up to 150 cc
420 HDR up to 150 cc up to 150 cc up to 150 cc
Gold & Black
Black Steel

Chain Specifications

Chain Roller Diameter Pin Length Plate Thickness Weight per 100 links Avg. Tensile Strength Pin Riveting Solid Bush X-Ring Seal Available Connecting Link
Inner Outer
  mm mm mm mm kg kgf (kN) - - - Standard Option
520 Z3 10.32 21.40 2.2 2.4 1.87 4240 (41.6) 4 Yes Yes RL -
525 Z3 10.32 23.70 2.4 2.6 2.10 4690 (46.0) 4 Yes Yes RL -
530 Z3 10.32 25.30 2.4 2.6 2.19 4690 (46.0) 4 Yes Yes RL -

428 X1R 8.50 20.80 2.0 2.0 1.12 2800 (27.5) 4 Yes Yes SL -
520 X1R 10.22 20.30 2.0 2.0 1.55 3700 (36.3) 4 Yes Yes DL RL/SL
520 X1R3 10.22 20.30 2.2 2.0 1.73 4050 (39.7) 4 Yes Yes DL RL/SL
525 X1R3 10.22 22.60 2.4 2.2 2.03 4200 (41.2) 4 Yes Yes RL SL
530 X1R 10.22 24.90 2.4 2.4 2.08 4200 (41.2) 4 Yes Yes RL SL

428 HPO 8.50 20.00 1.7 1.7 1.11 2250 (22.1) 4 Yes O-Ring SL -

520 HDS 10.22 18.60 2.2 2.2 1.55 4020 (39.4) 4 Yes - SL RL
520 HDR 10.22 17.80 2.0 2.0 1.47 3700 (36.3) 4 Yes - SL RL
420 HDR 7.77 15.05 1.6 1.6 0.74 2000 (19.6) 2 Yes - SL -
428 HDR 8.50 18.30 2.0 2.0 0.97 2500 (24.5) 2 Yes - SL -

Pin Riveting

Pressed four times for an extra strong rivet that resists powerful lateral forces on the outer plate

4
2

Solid Bush

Solid bushes provide enhanced resistance to distortion from repetitive shock loading

Riveted Bush

All 520 HDR/HDS/X1R/X1R2 have riveted bushes that resist powerful lateral forces on the inner plate

X-Ring Seal

X-Ring seals offer better sealing than the conventional O-Ring and produce far less friction. All Z3/X1R chains are equipped with X-Rings

Connecting Link Reference

SL
Spring/Clip Link
RL
Rivet Link
DL
Dual Link (contains both link types)

Technical Drawing
